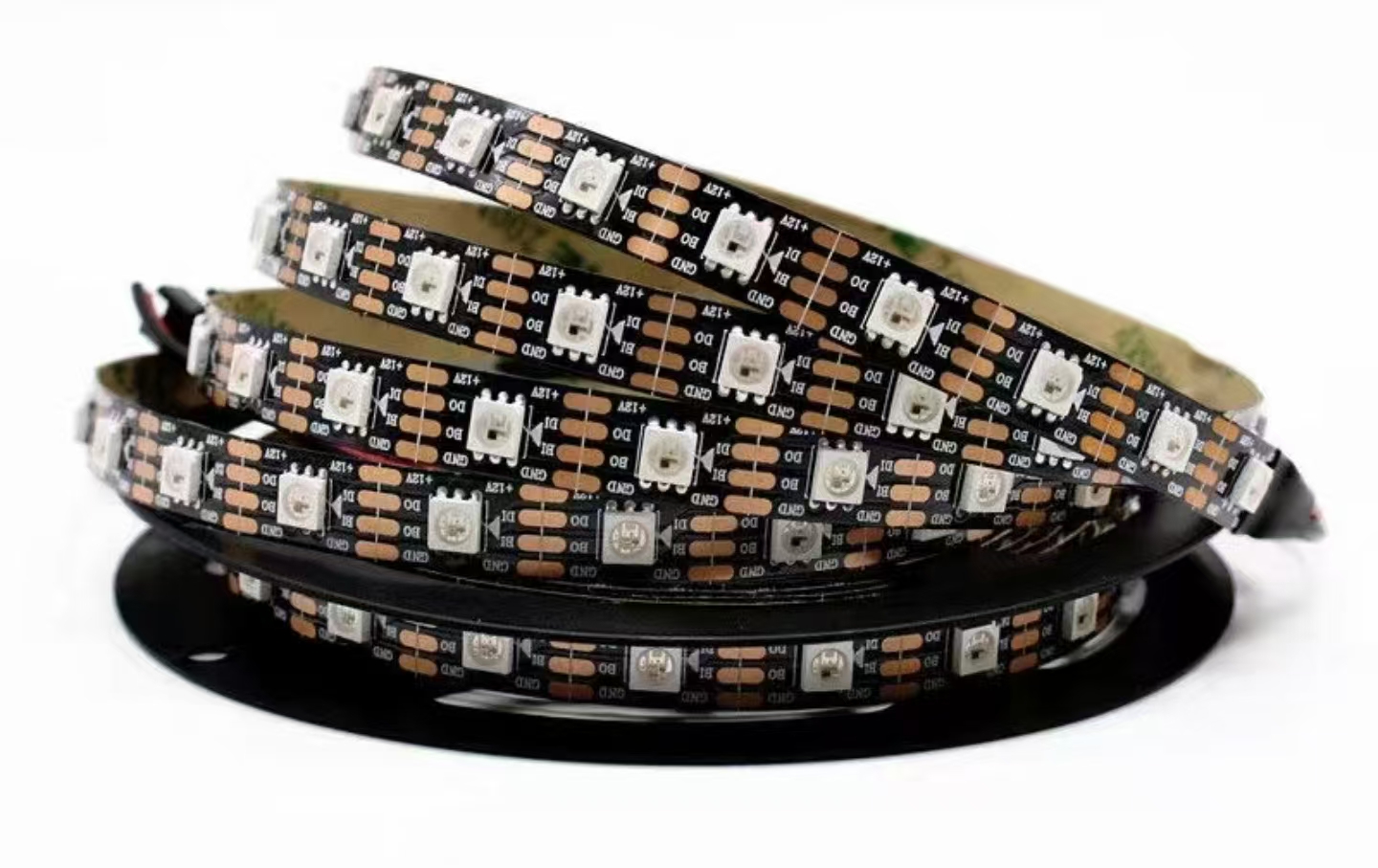

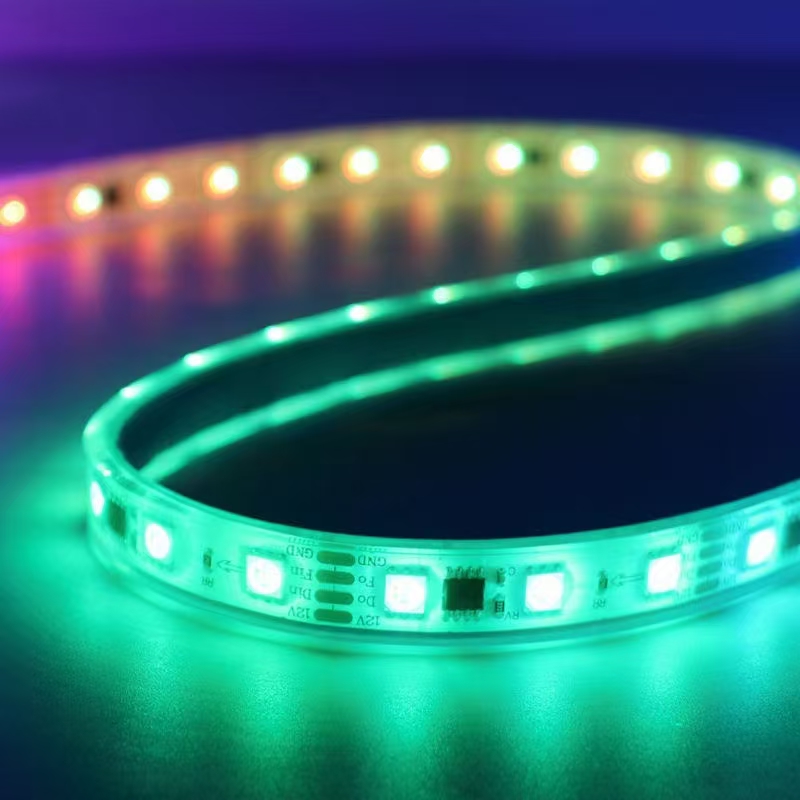

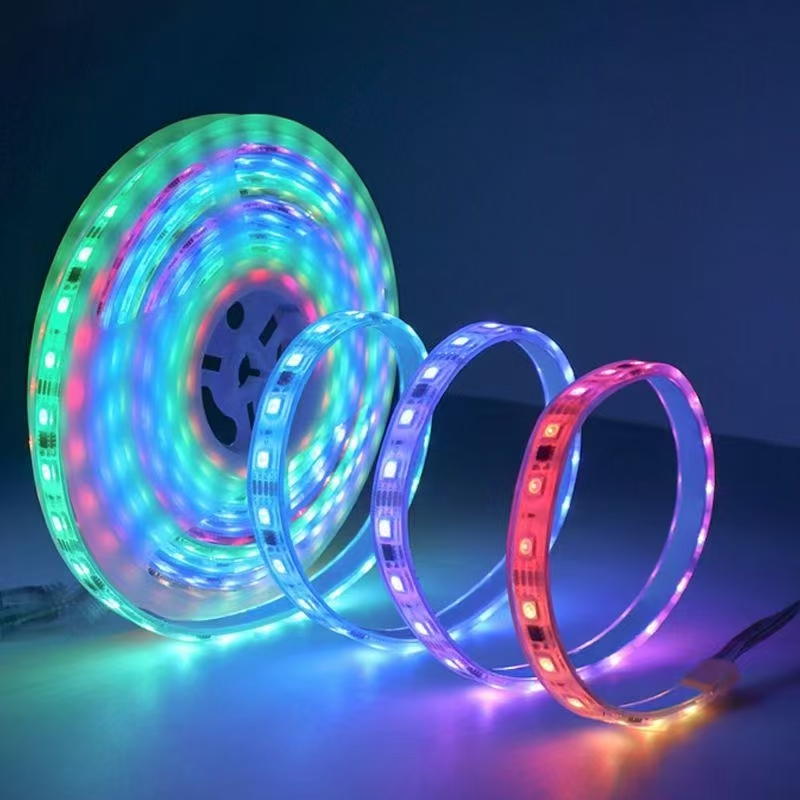

SMD 5050 RGB LED Strip 60LEDs/M DC12V/20pixes,DMX512 control


This is a DMX512 control RGB full color LED strip

20 Pixels/m

60pcs SMD RGB 5050 LEDs per meter

5meters/reel

12mm PCB width

The cutting unit length is 50mm(12V), or 100mm(24V) per section

The PCB is made by 2 Ounce thick copper All soldering Pads are very big, allowing you to easily cut and reconnect

DC12/24V constant voltage operation

Both ends have 5pins bare wires for powering

3M tape attached on backside of FPC

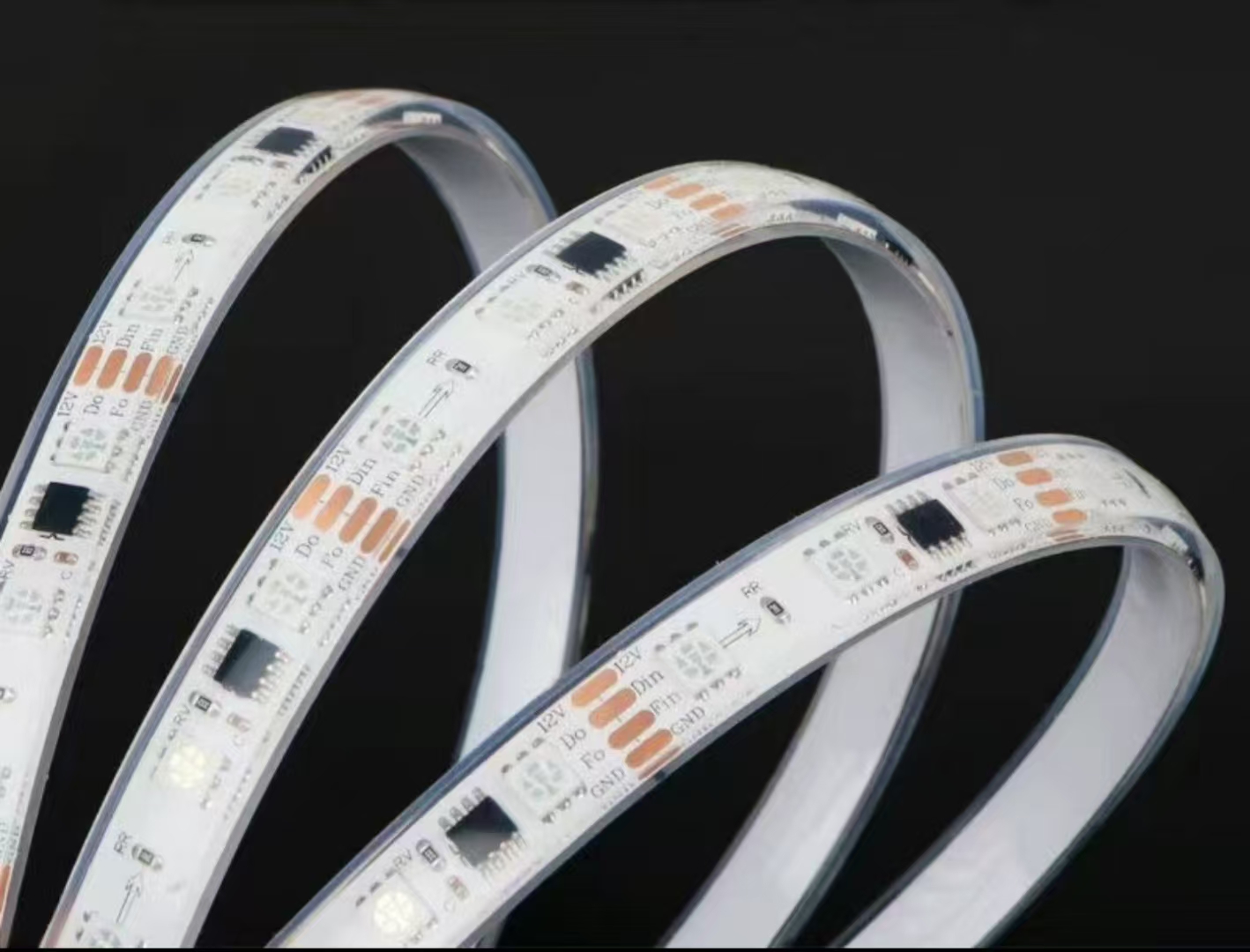

3 different waterproof types IP64, IP65, IP68

Product Parameter

Item No. S12F5050L60CV12
S12F5050L60CV24
Voltage 12V DC 24V DC
Power Typical 15Watt/meter Typical 15Watt/meter
Pixels 20 Pixels 10 Pixels
LED Type SMD 5050 SMD 5050
LEDs/m 60PCS 60PCS
Cutting unit
50mm(3LED) 100mm(6led)
Control Mode DMX512 (data A and data B) DMX512 (data A and data B)
Available colors         full color RGB  full color RGB
IP Rate  IP20/IP64/IP65/IP67 IP20/IP64/IP65/IP67
