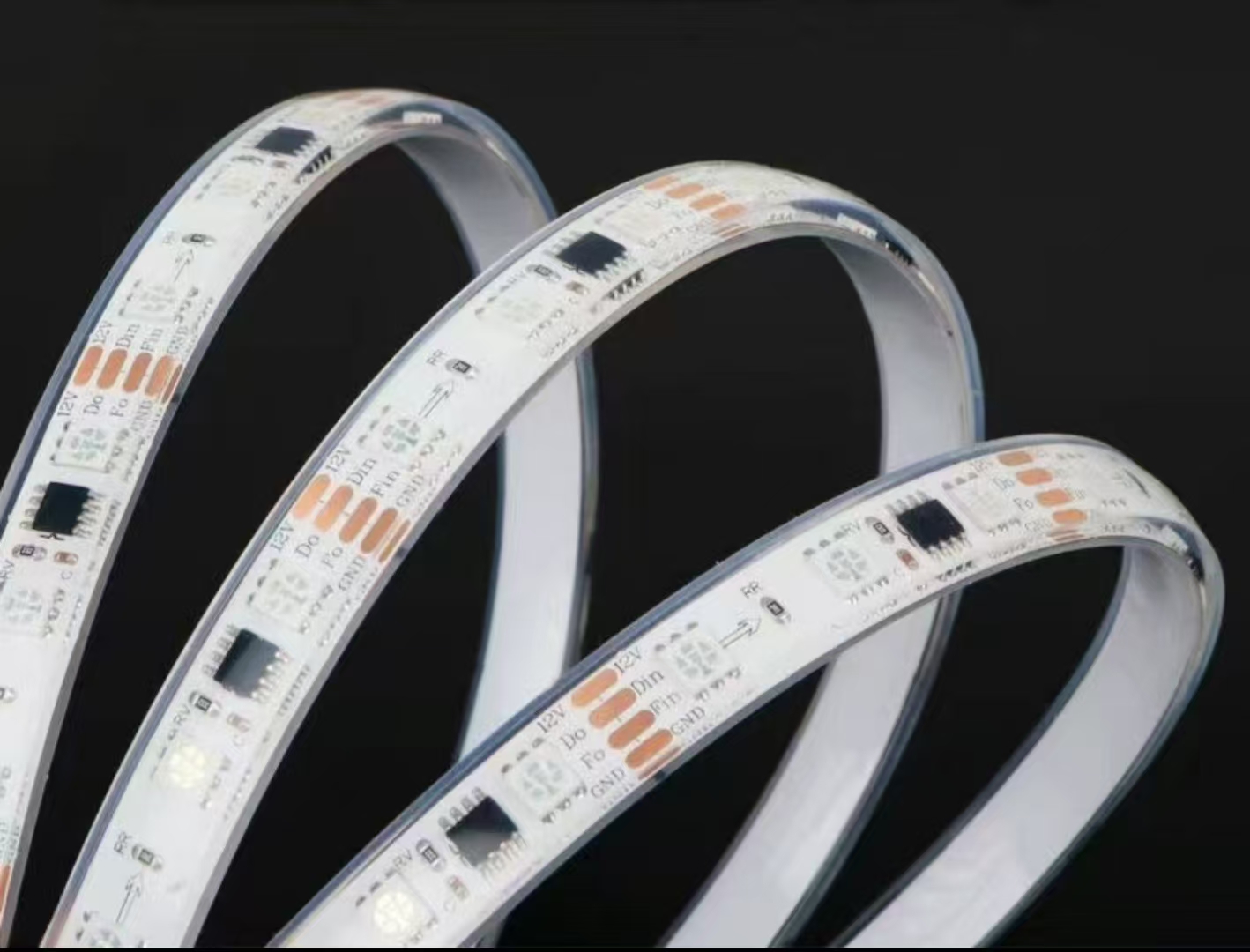

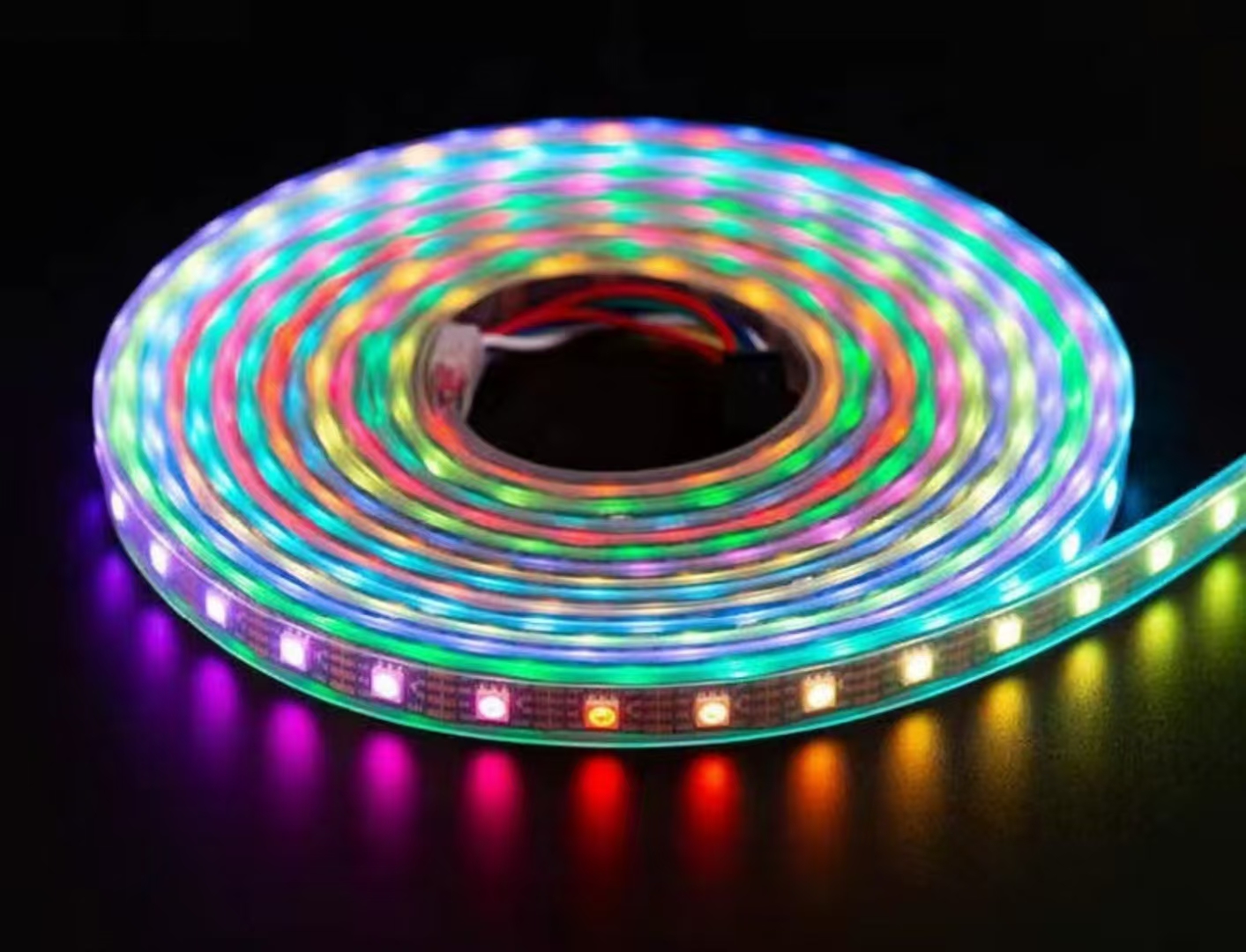

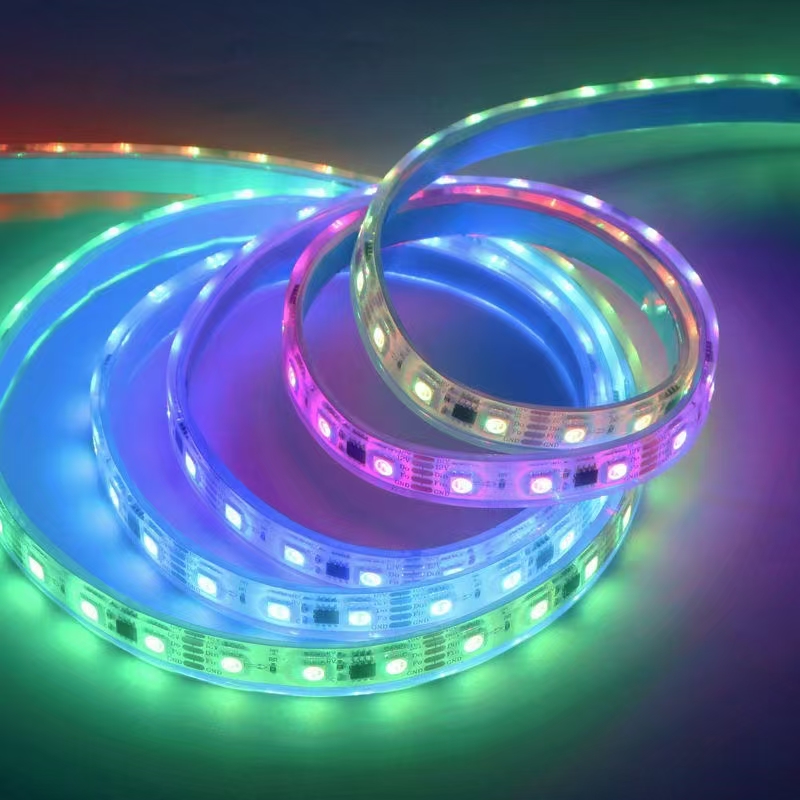

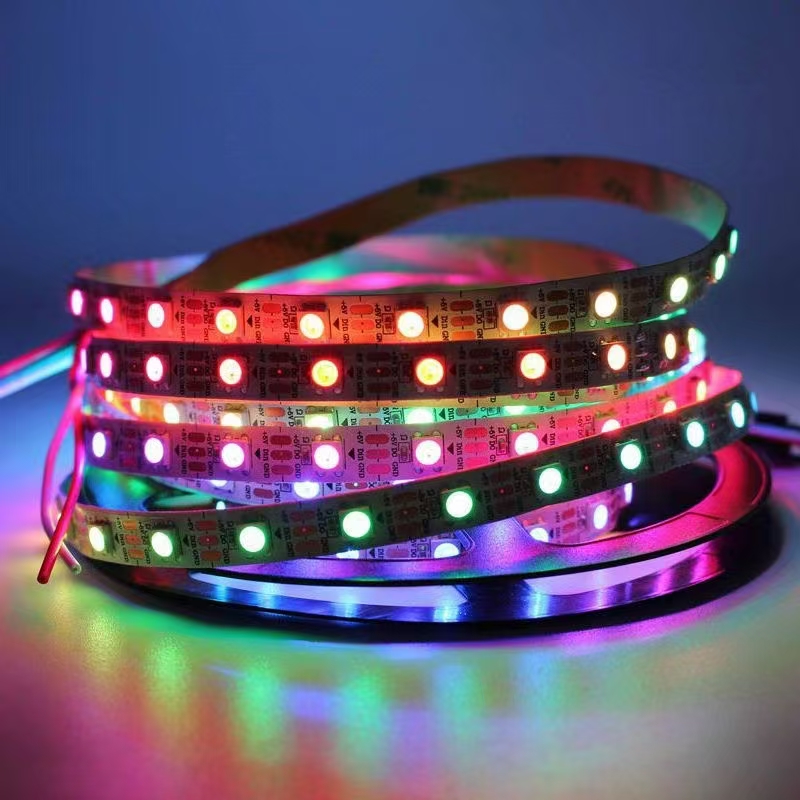

SMD 5050 RGB LED Strip 60LEDs/M DC12V with 20 pixels/m,SPI control


This is a SPI/TTL control RGB color LED strip 20 Pixels

60pcs SMD RGB 5050 LEDs per meter

5meters/reel

10mm PCB width

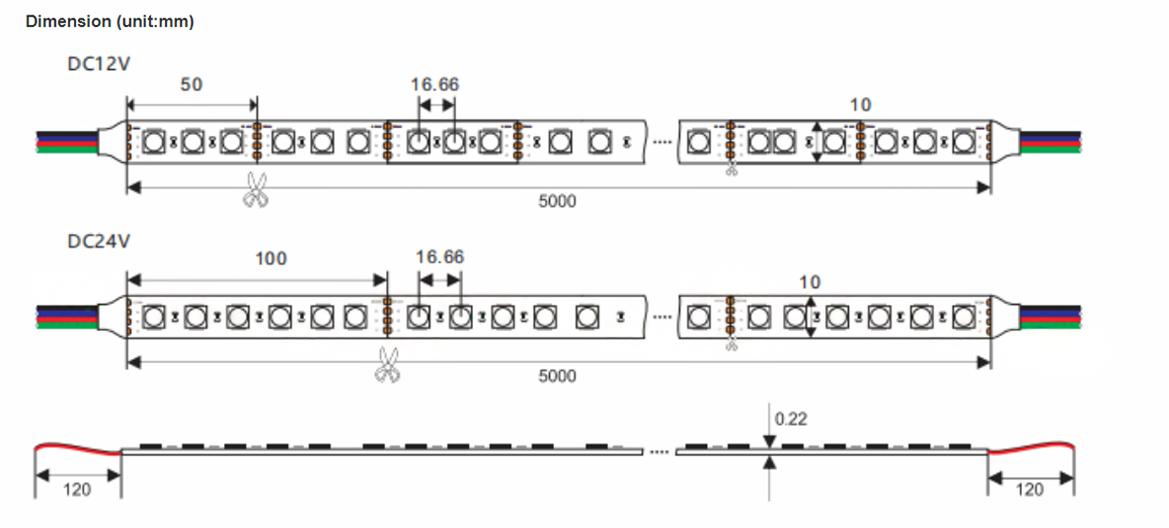

The cutting unit length is 50mm(12V), or 100mm(24V) per section

The PCB is made by 2 Ounce thickness copper

All soldering Pads are very large, allowing you to easily cut and reconnect

DC12/24V constant voltage operation

Both ends have 3pin bare wires for powering

3M tape attached on backside of FPC

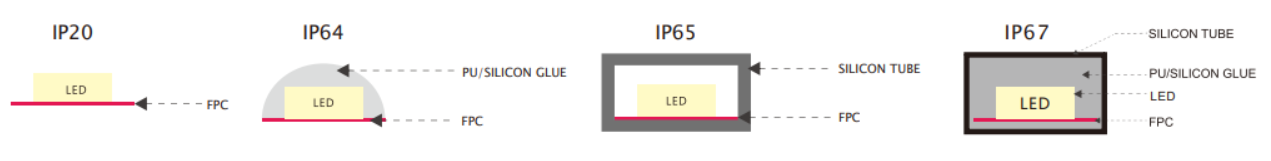

3 different waterproof types IP64, IP65, IP67

Product Parameter

Item No. S12Q5050L60CV12
S12Q5050L60CV24
Voltage 12V DC 24V DC
Power Typical 15Watt/meter Typical 15Watt/meter
Pixels 20 Pixels 10 Pixels
LED Type SMD 5050 SMD 5050
LEDs/m 60PCS 60PCS
Cutting unit
50mm(3LED) 100mm(6led)
Control Mode SPI / TTL SPI / TTL
Available colors         RGB  RGB
IP Rate  IP20/IP64/IP65/IP67 IP20/IP64/IP65/IP67
