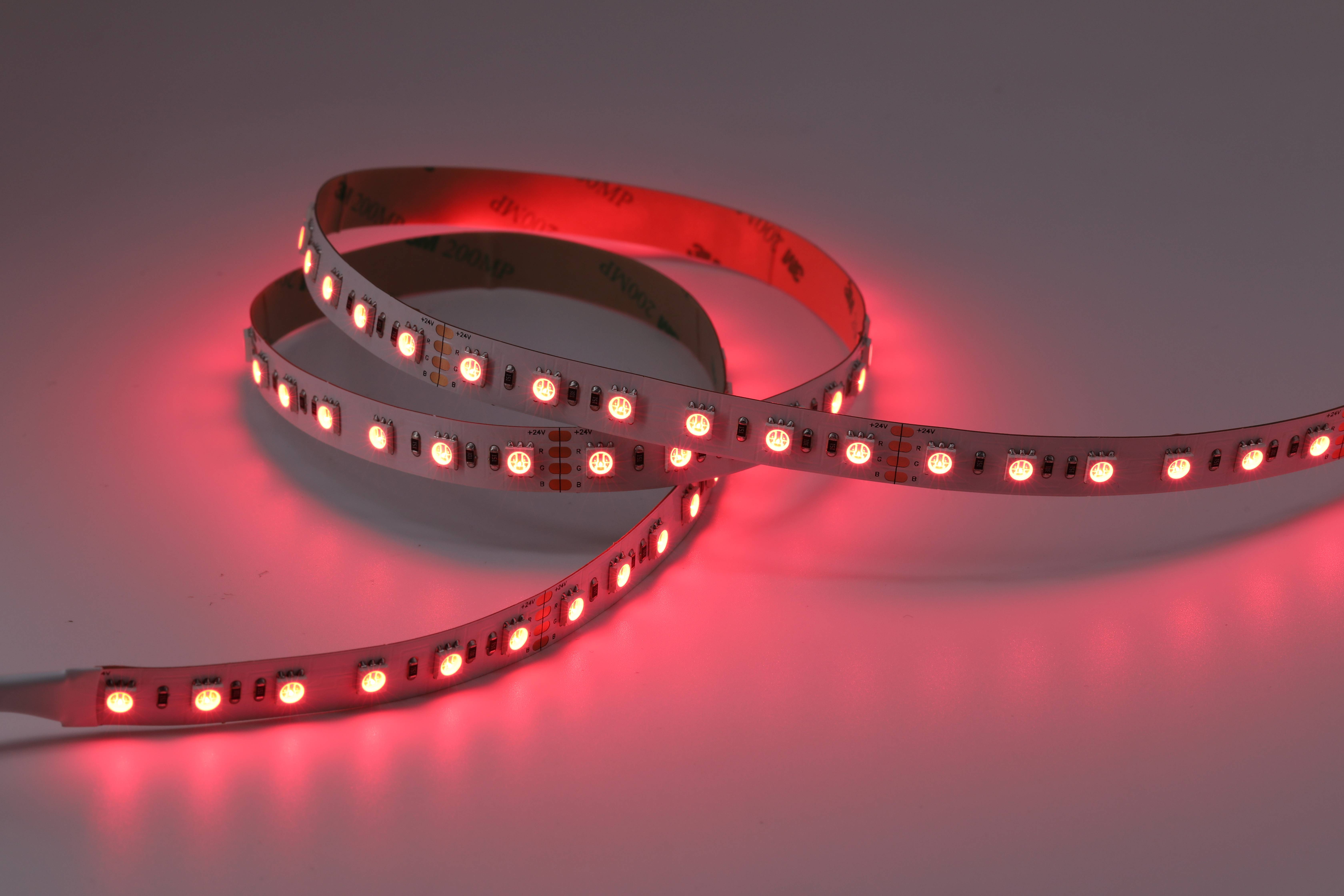

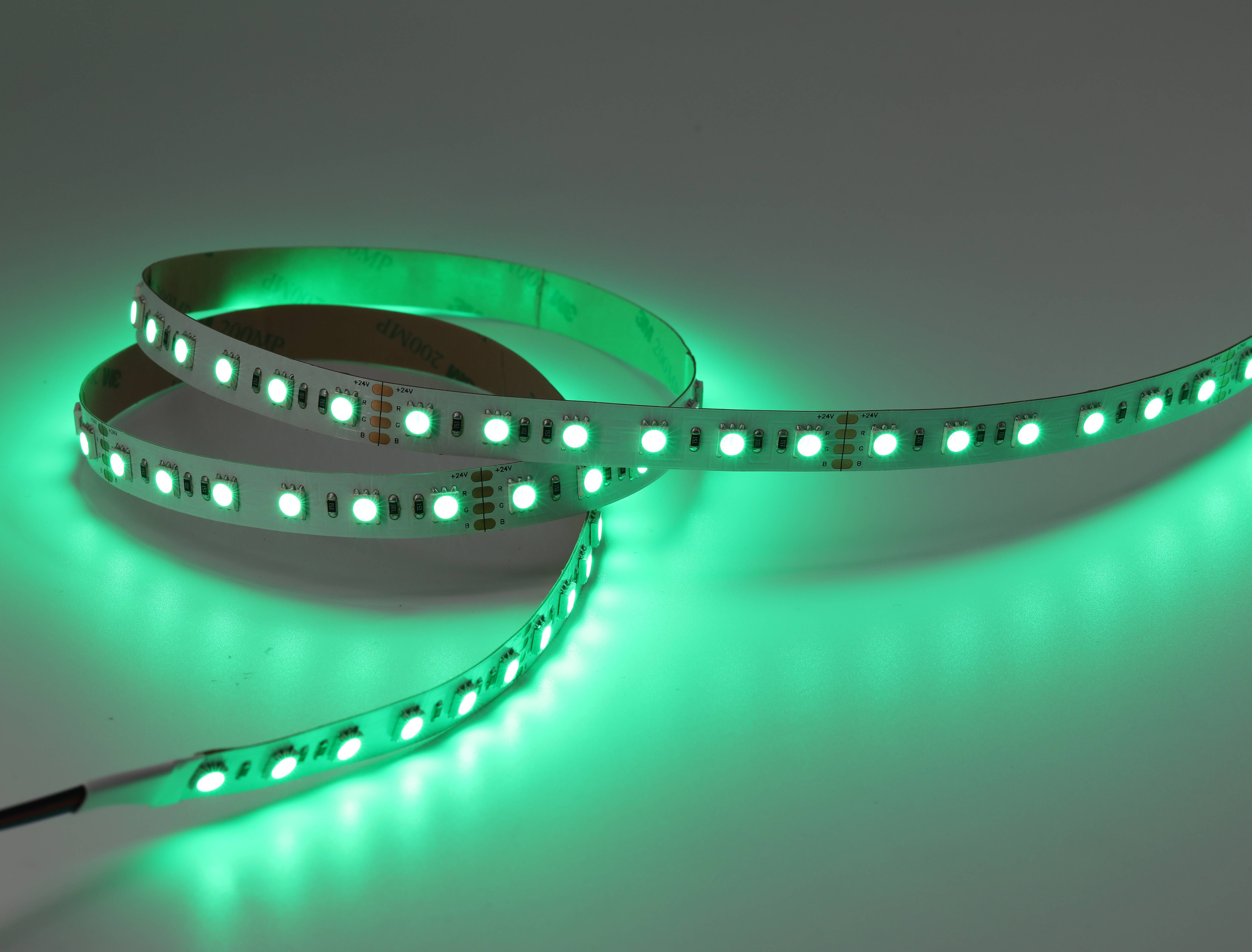

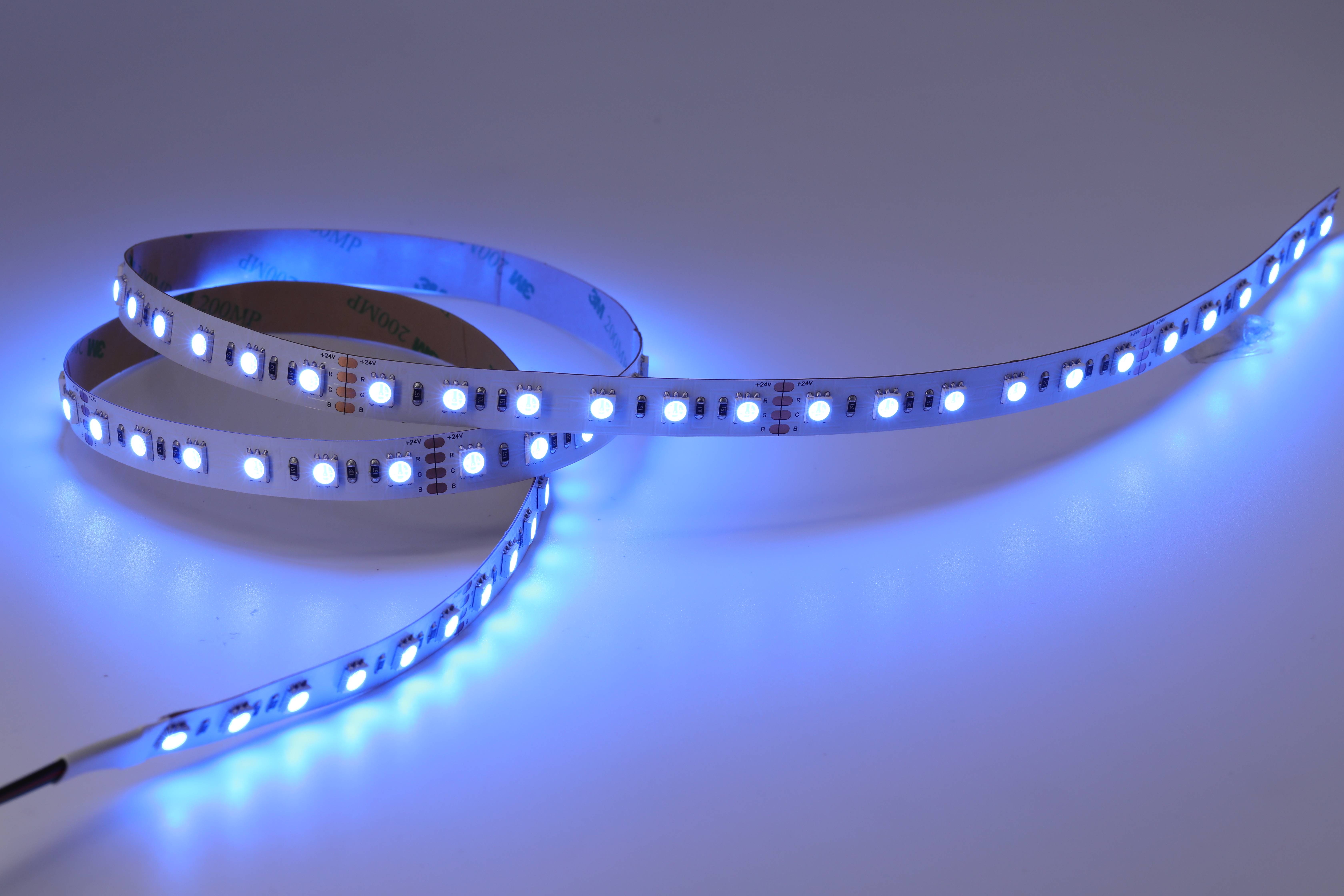

PWM control 30LEDs/M DC12V 5050 RGB LED Strip


PWM control RGB color LED strip

30pcs SMD RGB 5050 LEDs per meter

5meters/reel

10mm PCB width

The cutting unit length is 100mm(12V) per section

The PCB is made by 2 Ounce thickness copper

All soldering Pads are very large, allowing you to easily cut and reconnect

DC12V constant voltage operation

Both ends have 4pin bare wires for powering

3M tape attached on backside of FPC

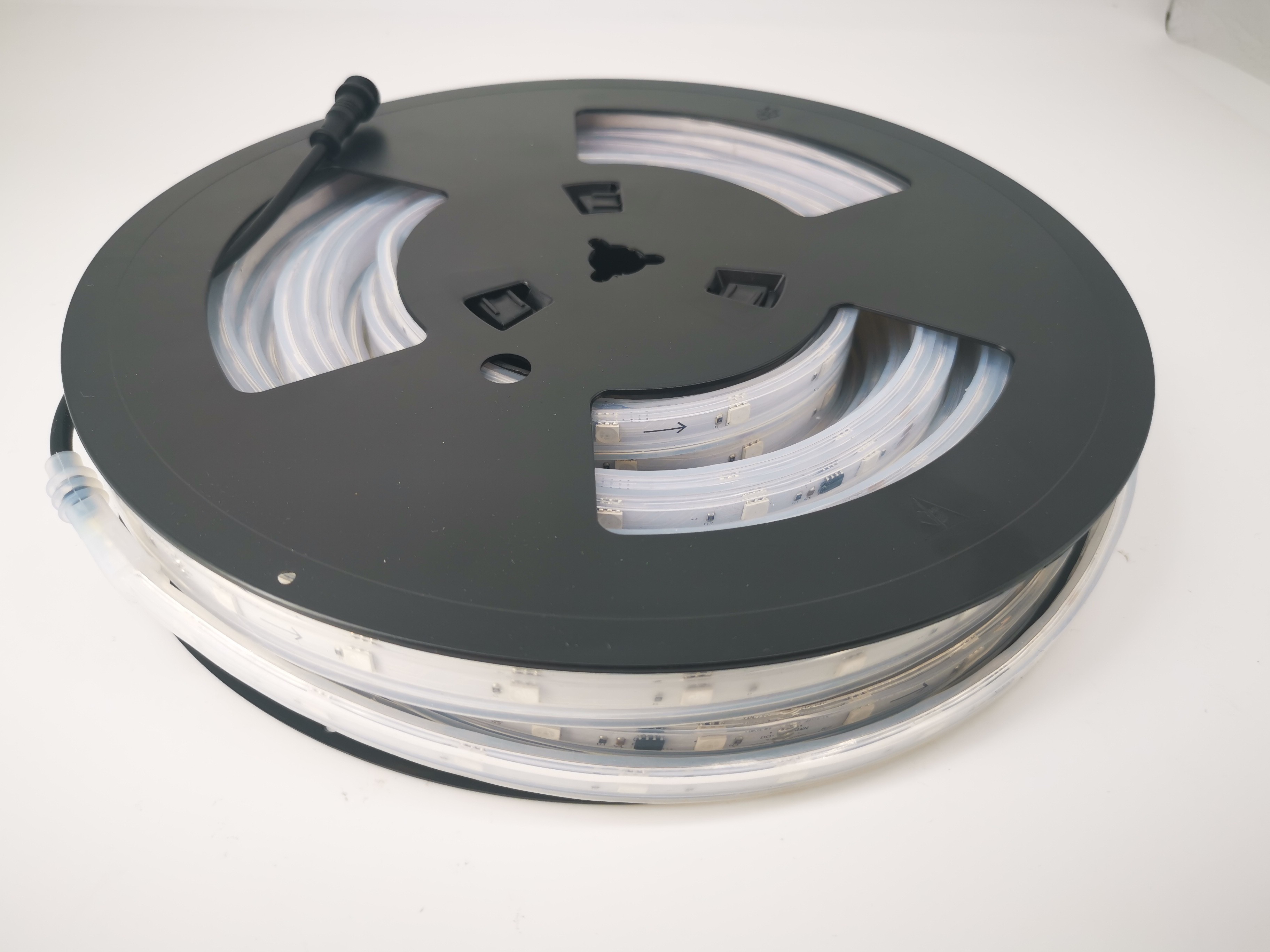

3 different waterproof types IP64, IP65, IP67

Product Parameter

Item No. S10Q5050L30CV12
S10Q5050L30CV24
Voltage 12V DC 24V DC
Power 7.2watt/meter 7.2Watt/meter
Pixels / /
LED Type SMD 5050 SMD 5050
LEDs/m 30PCS 30PCS

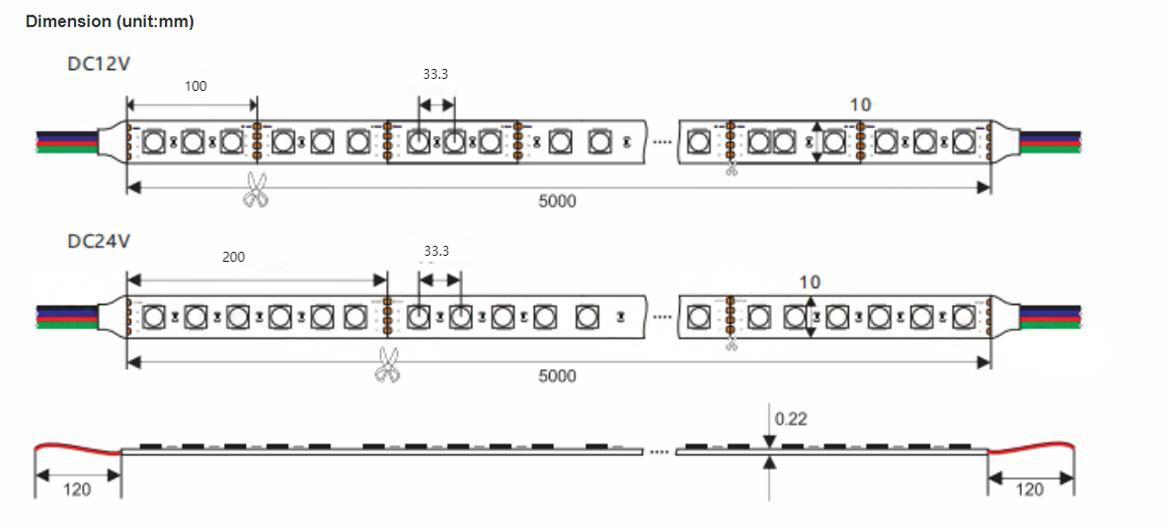

Cutting unit
100mm(3LED) 200mm(6led)
Control Mode PWM(all color change at same time) PWM(all color change at same time)
Available colors         R+G+B  R+G+B
IP Rate  IP20/IP64/IP65/IP67 IP20/IP64/IP65/IP67
