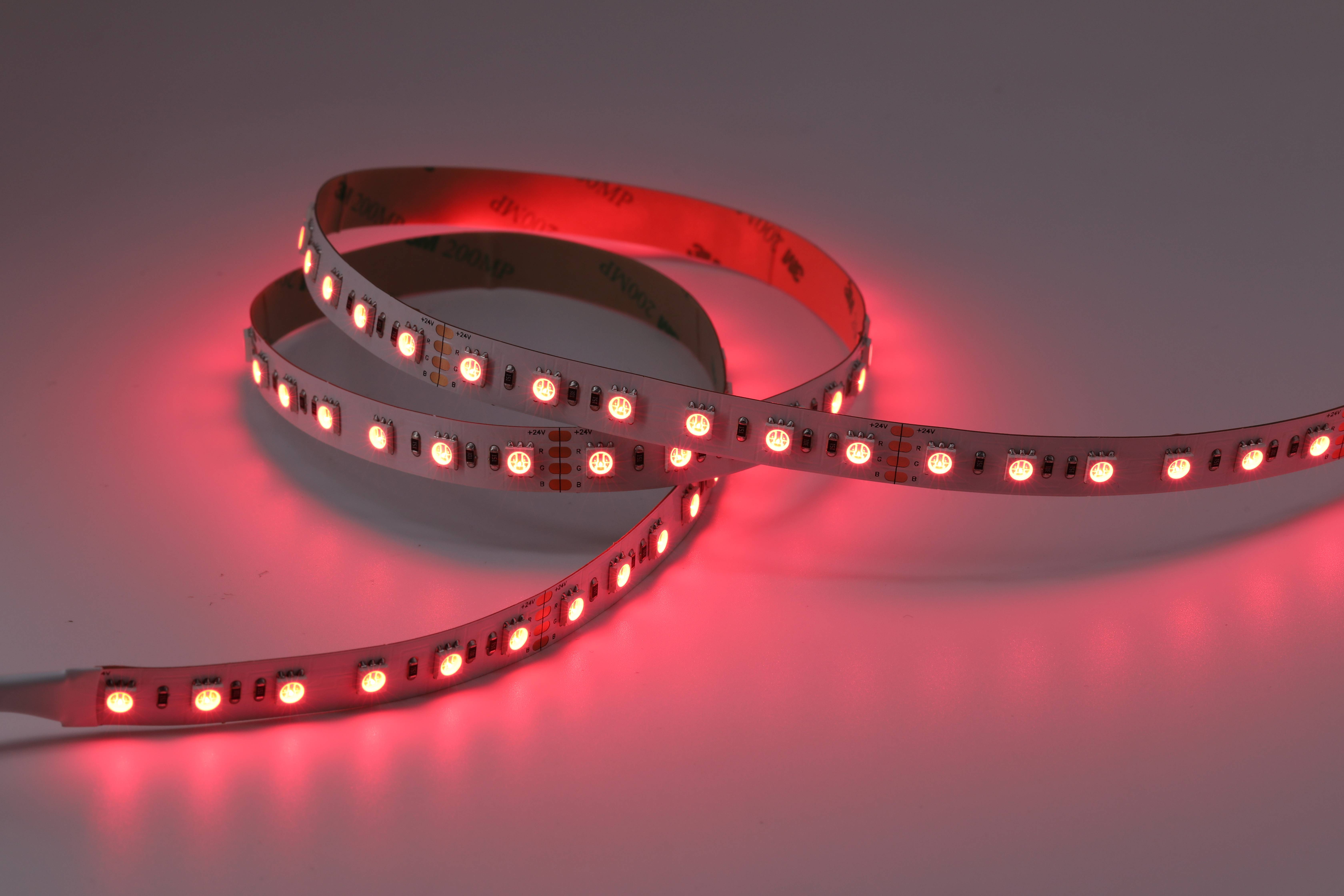

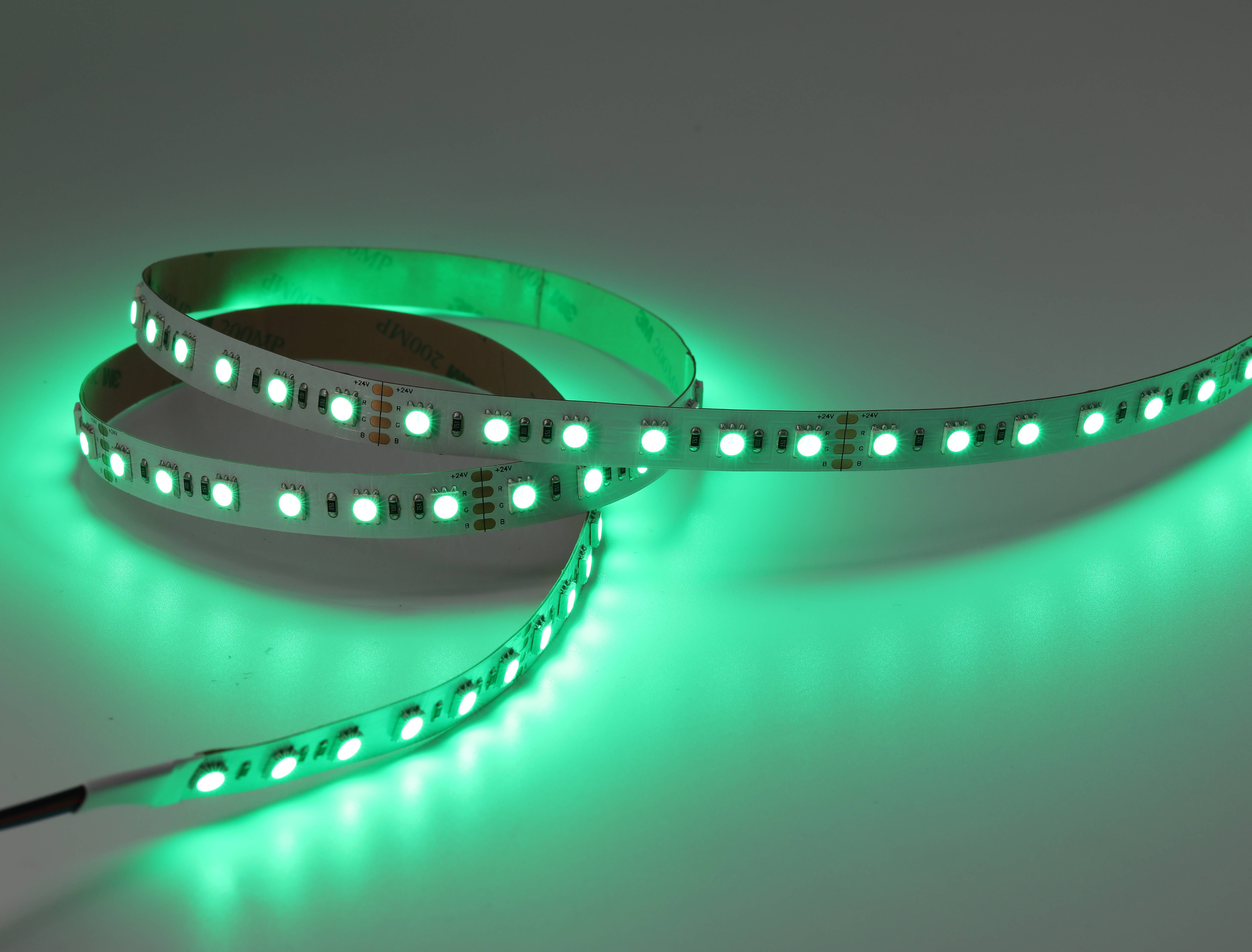

PWM control 60LEDs/M DC12V 5050 RGB LED Strip


PWM control RGB color LED strip

60pcs SMD RGB 5050 LEDs per meter

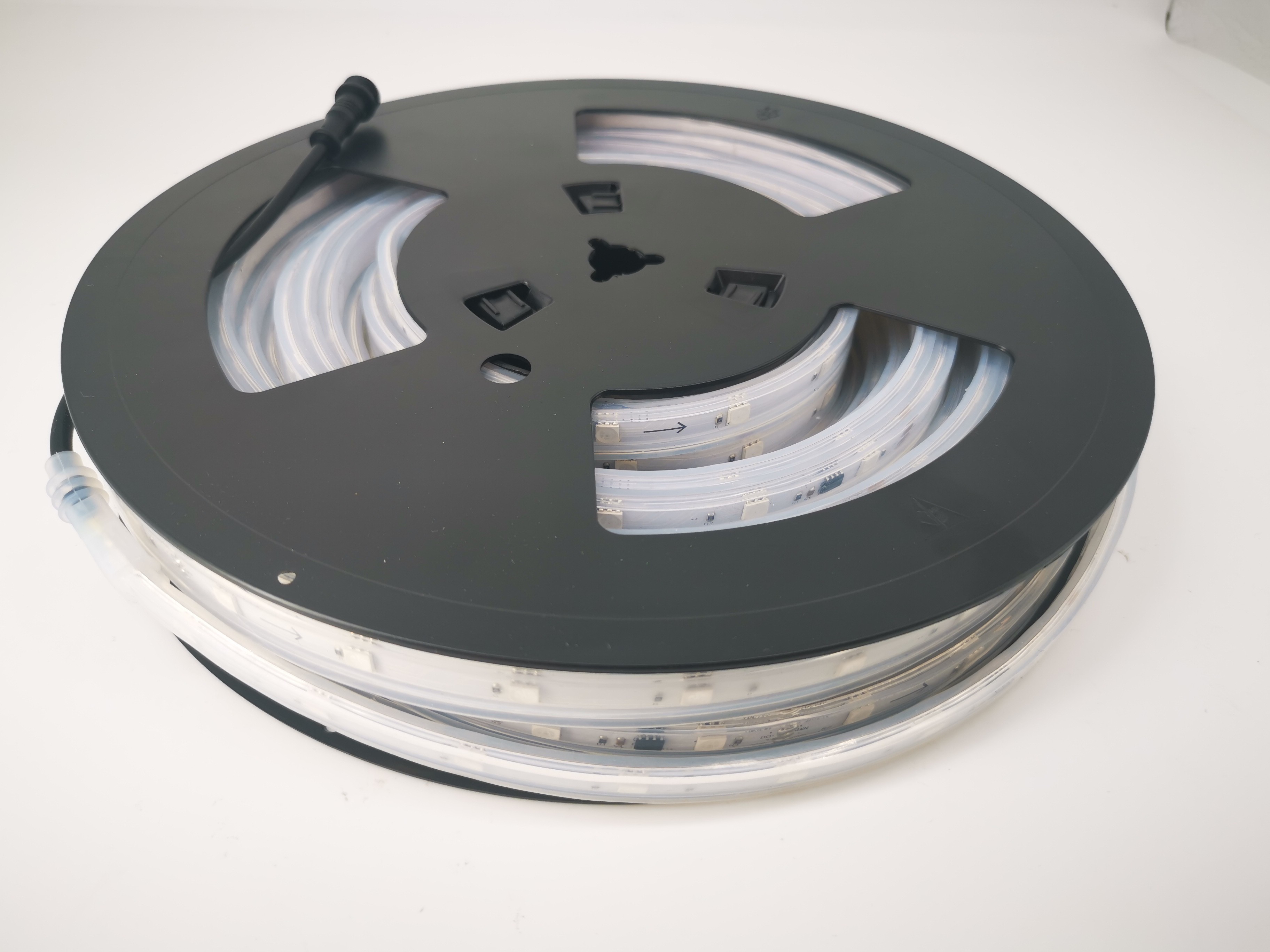

5meters/reel

10mm PCB width

The cutting unit length is 50mm(12V) per section

The PCB is made by 2 Ounce thickness copper

All soldering Pads are very large, allowing you to easily cut and reconnect

DC12V constant voltage operation

Both ends have 4pin bare wires for powering

3M tape attached on backside of FPC

3 different waterproof types IP64, IP65, IP67

Product Parameter

Item No. S10Q5050L60CV12
S10Q5050L60CV24
Voltage 12V DC 24V DC
Power 14.4watt/meter 14.4Watt/meter
Pixels / /
LED Type SMD 5050 SMD 5050
LEDs/m 60PCS 60PCS
Cutting unit
50mm(3LED) 100mm(6led)
Control Mode PWM(all color change at same time) PWM(all color change at same time)
Available colors         R+G+B  R+G+B
IP Rate  IP20/IP64/IP65/IP67 IP20/IP64/IP65/IP67
