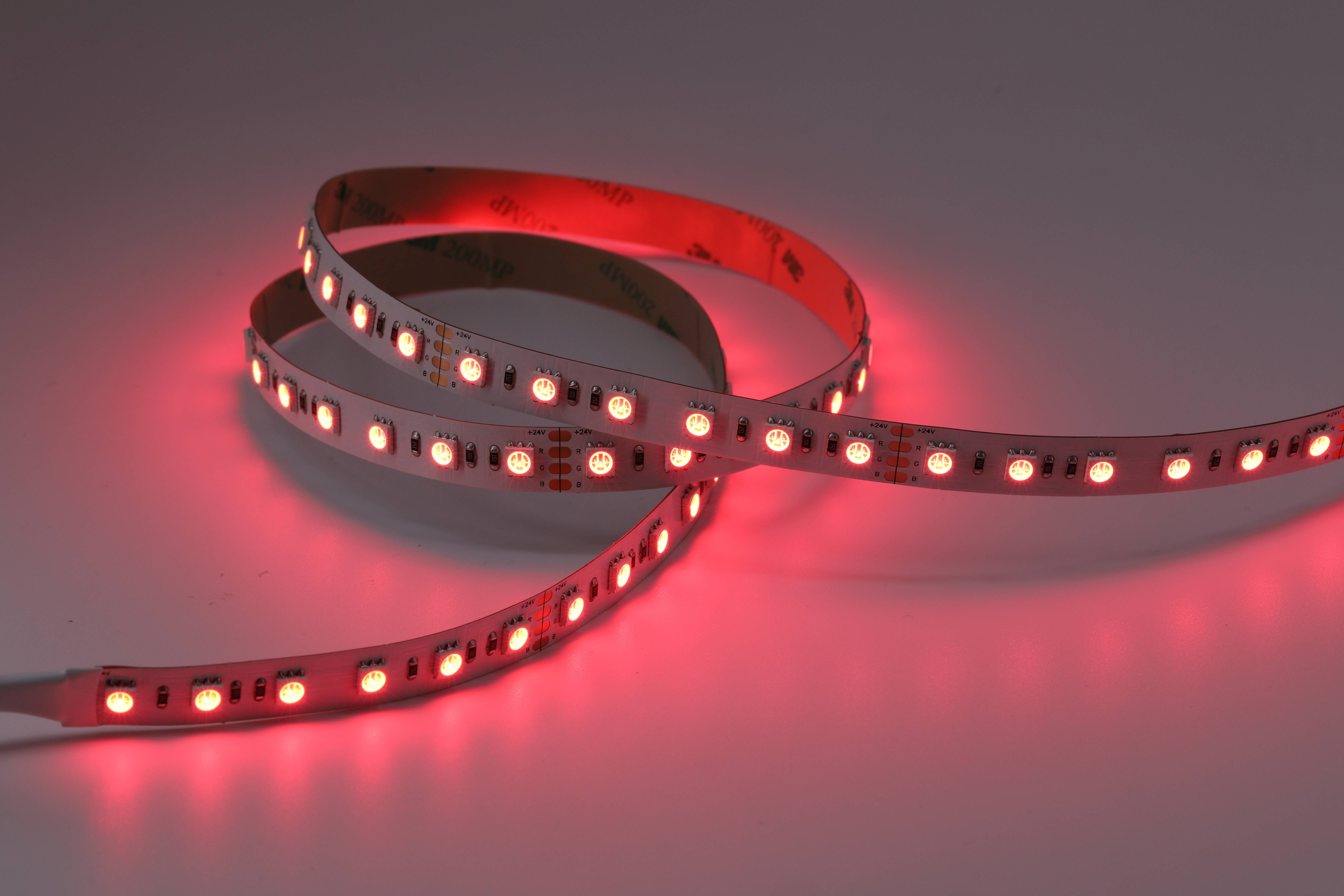

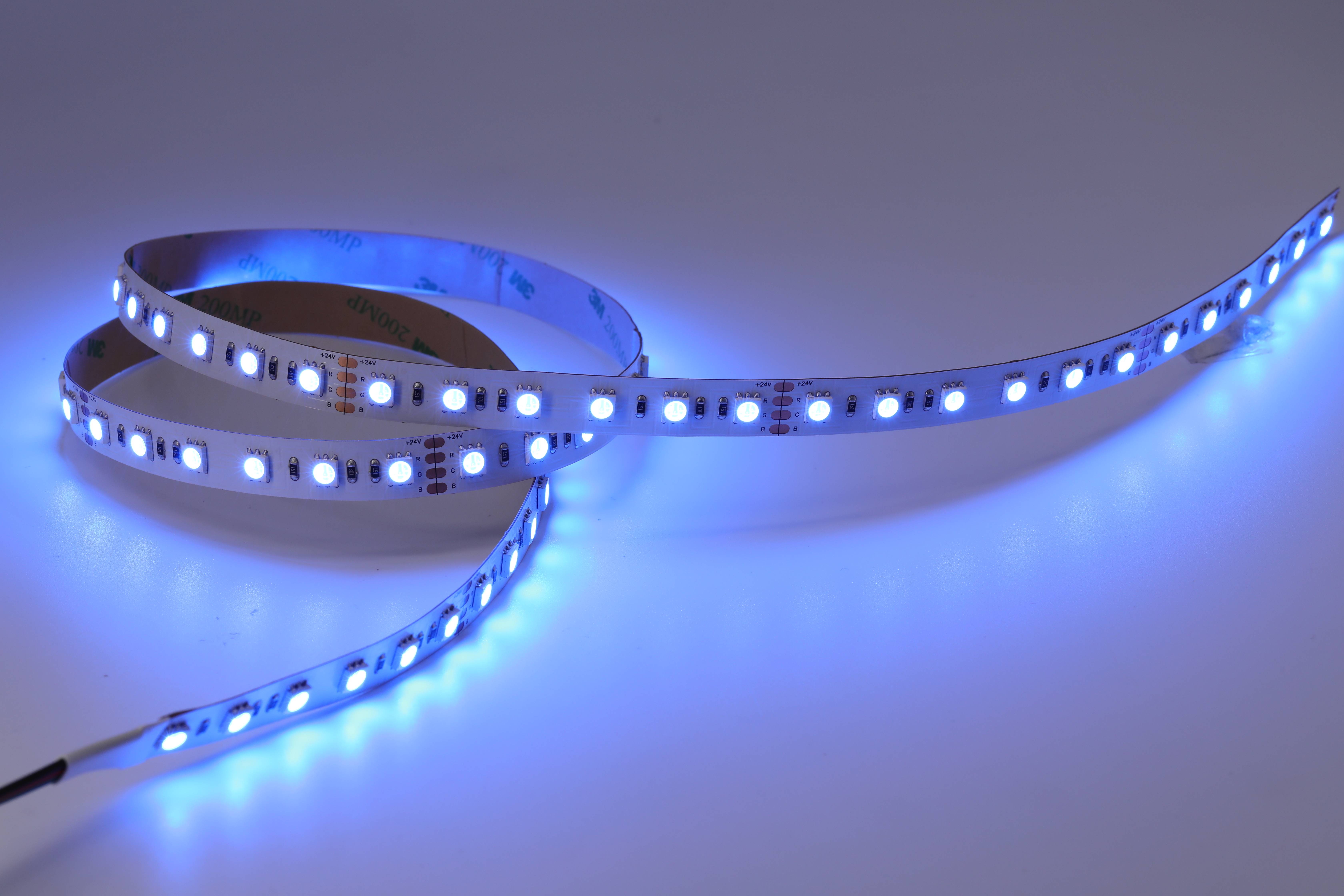

PWM control RGB color LED strip
84pcs SMD RGB 5050 LEDs per meter

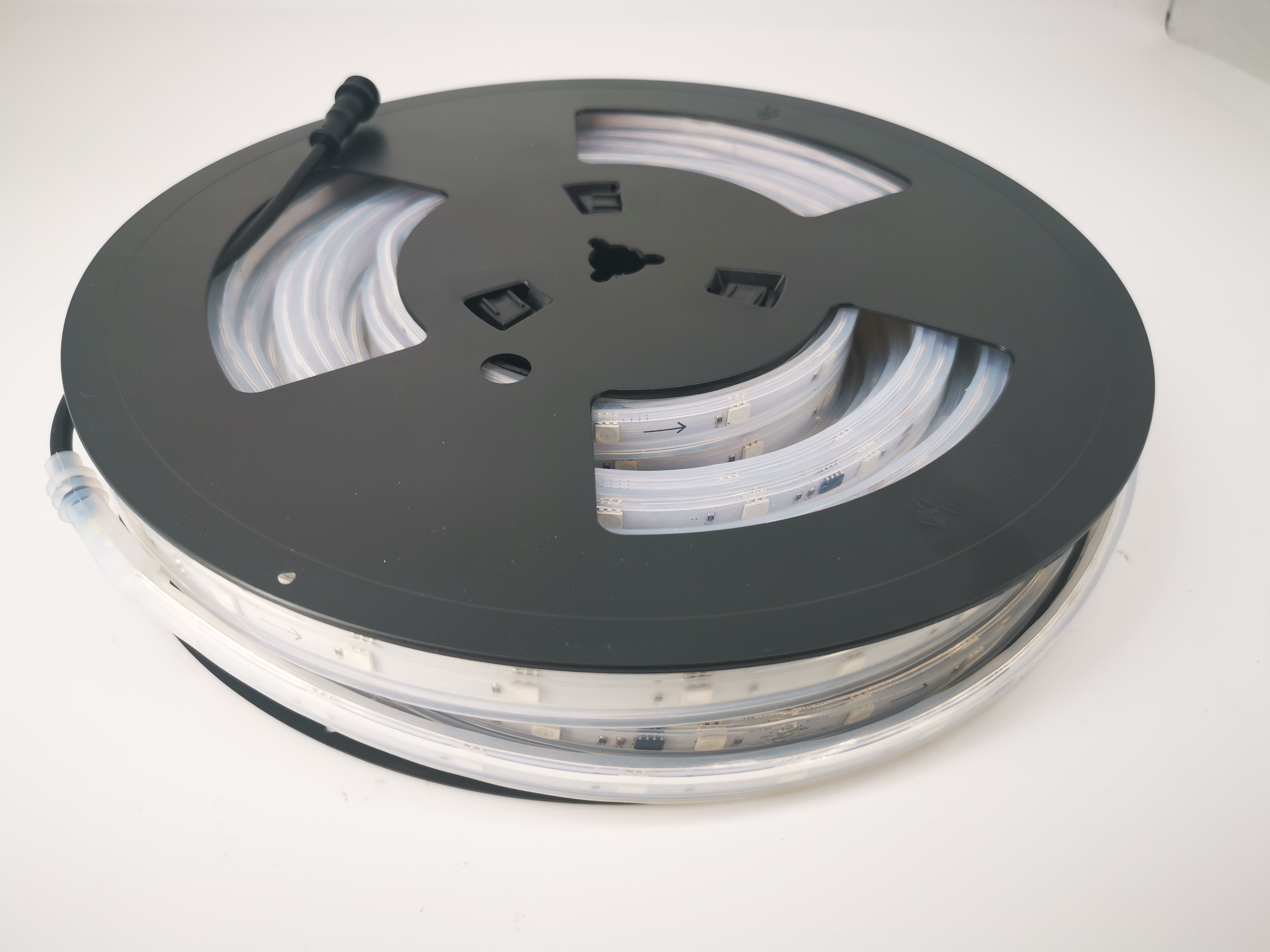

5meters/reel
10mm PCB width

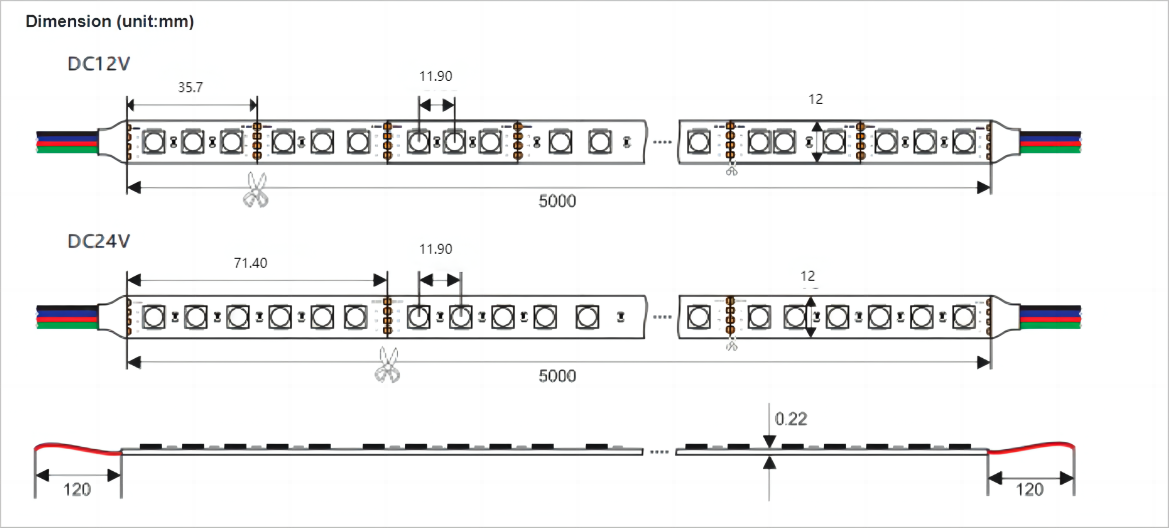

The cutting unit length is 35.7mm(12V)per group
The PCB is made by 2 Ounce thickness copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC12 constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
3 different waterproof types IP64, IP65, IP67
Item No. |
S10Q5050L84CV12 |
S10Q5050L84CV24 |
Voltage | 12V DC | 24V DC |
Power | 20watt/meter |
Typical 20Watt/meter |
Pixels | / | / |
LED Type | SMD 5050 |
SMD 5050 |
LEDs/m | 84PCS | 84PCS |
Cutting unit |
35.7mm(3LED) | 71.4mm(6led) |
Control Mode | PWM(all color change at same time) | PWM(all color change at same time) |
Available colors | R+G+B |
R+G+B |
IP Rate | IP20/IP64/IP65/IP67 |
IP20/IP64/IP65/IP67 |
