PWM control 60LEDs/M DC24V 5050 RGB LED Strip


PWM control RGB color LED strip

60pcs SMD RGB 5050 LEDs per meter

5meters/reel

10mm PCB width

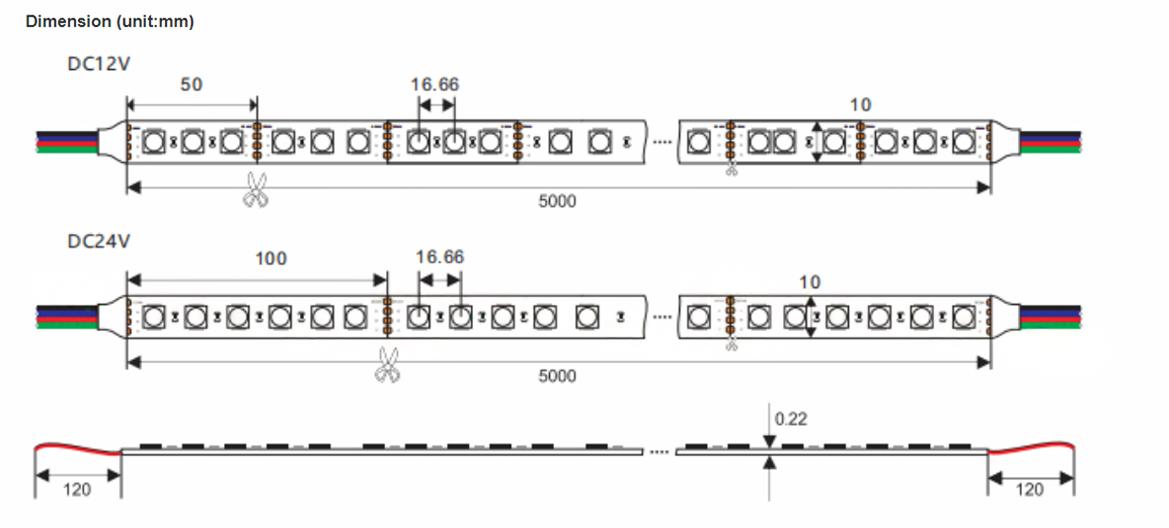

The cutting unit length is 50mm(12V) or 100mm(24V) per section

The PCB is made by 2 Ounce thickness copper

All soldering Pads are very large, allowing you to easily cut and reconnect

DC12/24V constant voltage operation

Both ends have 4pin bare wires for powering

3M tape attached on backside of FPC

3 different waterproof types IP64, IP65, IP67

Product Parameter

Item No. S10Q5050L60CV12
S10Q5050L60CV24
Voltage 12V DC 24V DC
Power 14.4watt/meter 14.4Watt/meter
Pixels / /
LED Type SMD 5050 SMD 5050
LEDs/m 60PCS 60PCS
Cutting unit
50mm(3LED) 100mm(6led)
Control Mode PWM(all color change at same time) PWM(all color change at same time)
Available colors         R+G+B  R+G+B
IP Rate  IP20/IP64/IP65/IP67 IP20/IP64/IP65/IP67
