This is a DMX512 control RGB full color LED strip
14 Pixels/m
84pcs SMD RGB 5050 LEDs per meter
5meters/reel
12mm PCB width

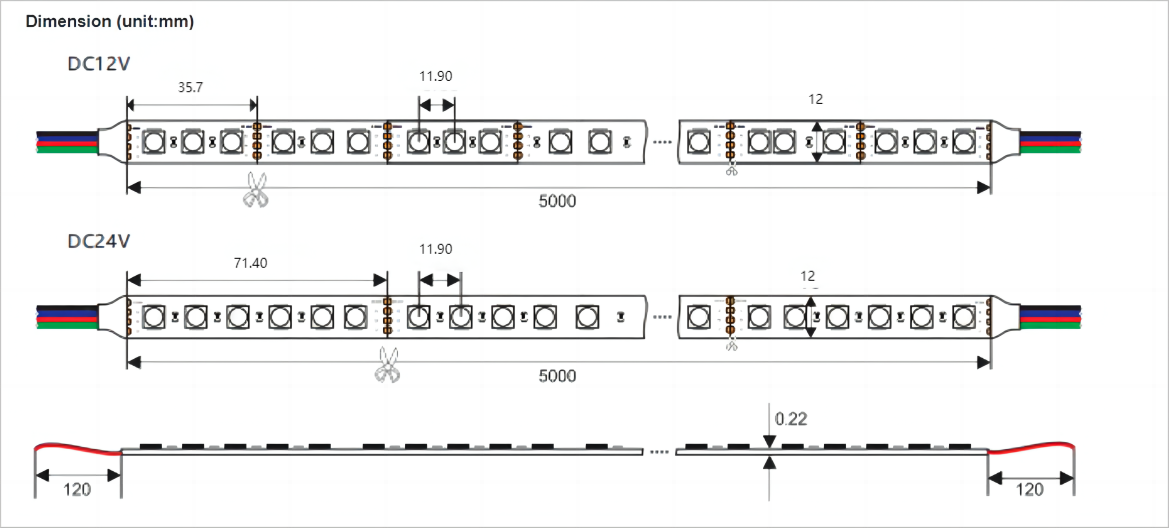

The cutting unit length is 71.4mm(24V), per section
The PCB is made by 2 Ounce thick copper All soldering Pads are very big, allowing you to easily cut and reconnect
DC24V constant voltage operation
Both ends have 5pins bare wires for powering
3M tape attached on backside of FPC
3 different waterproof types IP64, IP65, IP68
Item No. |
S12F5050L84CV12 |
S12F5050L84CV24 |
Voltage | 12V DC | 24V DC |
Power | Typical 16.8Watt/meter |
Typical 16.8Watt/meter |
Pixels | 28 Pixels | 14 Pixels |
LED Type | SMD 5050 |
SMD 5050 |
LEDs/m | 84PCS | 84PCS |
Cutting unit |
35.7mm(3LED) | 71.4mm(6led) |
Control Mode | DMX512 (data A and data B) | DMX512 (data A and data B) |
Available colors | full color RGB |
full color RGB |
IP Rate | IP20/IP64/IP65/IP67 |
IP20/IP64/IP65/IP67 |
