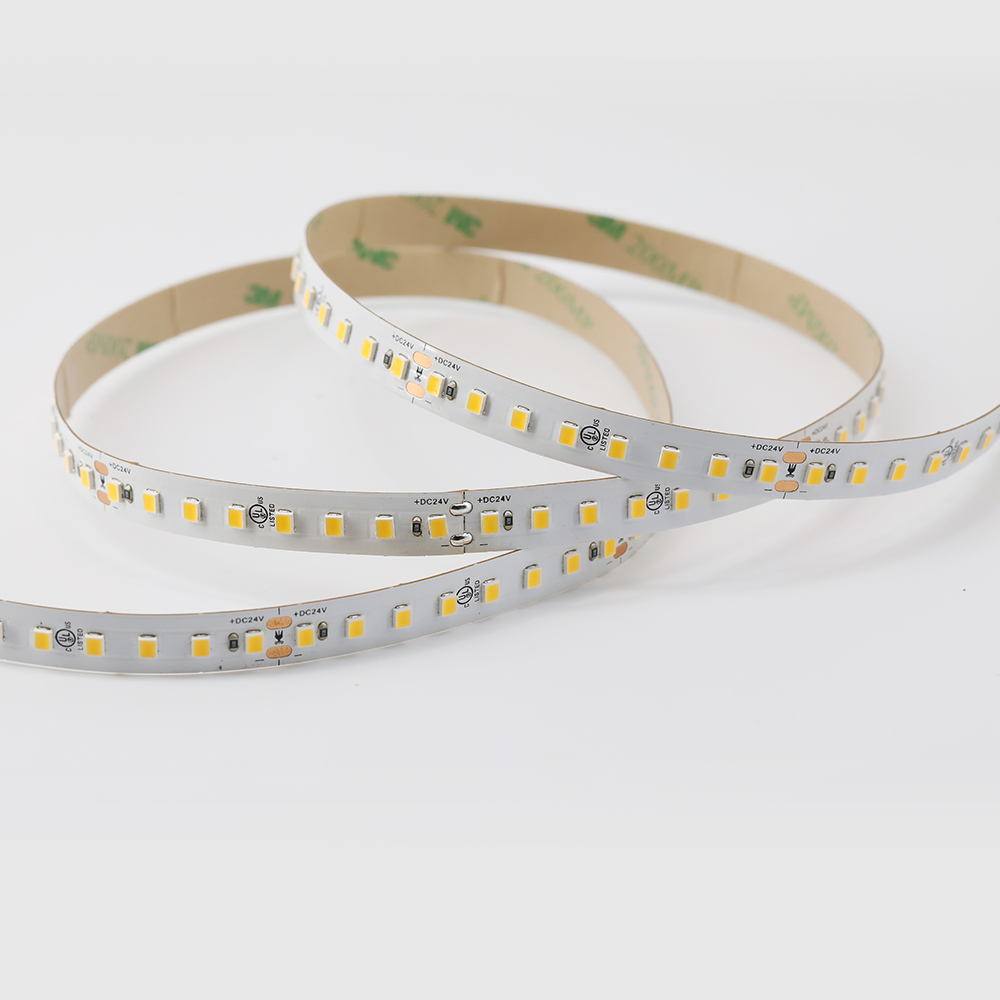

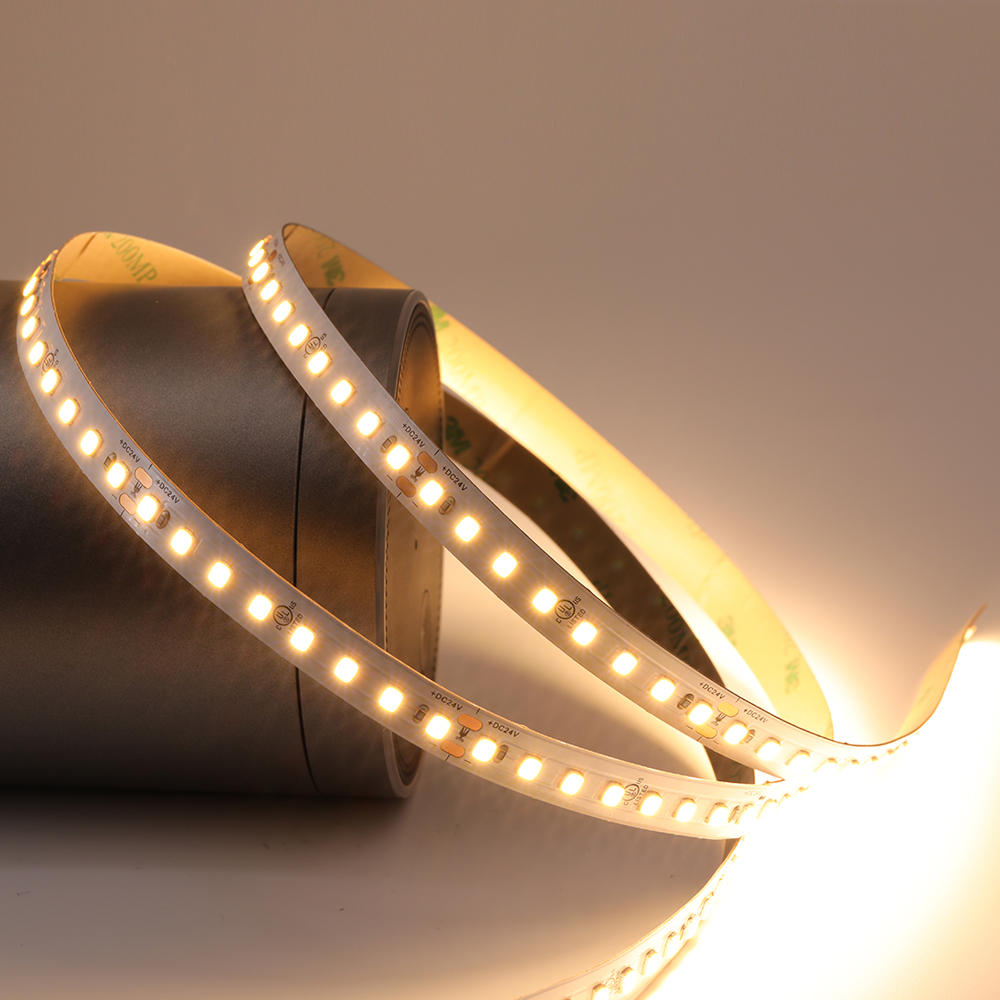

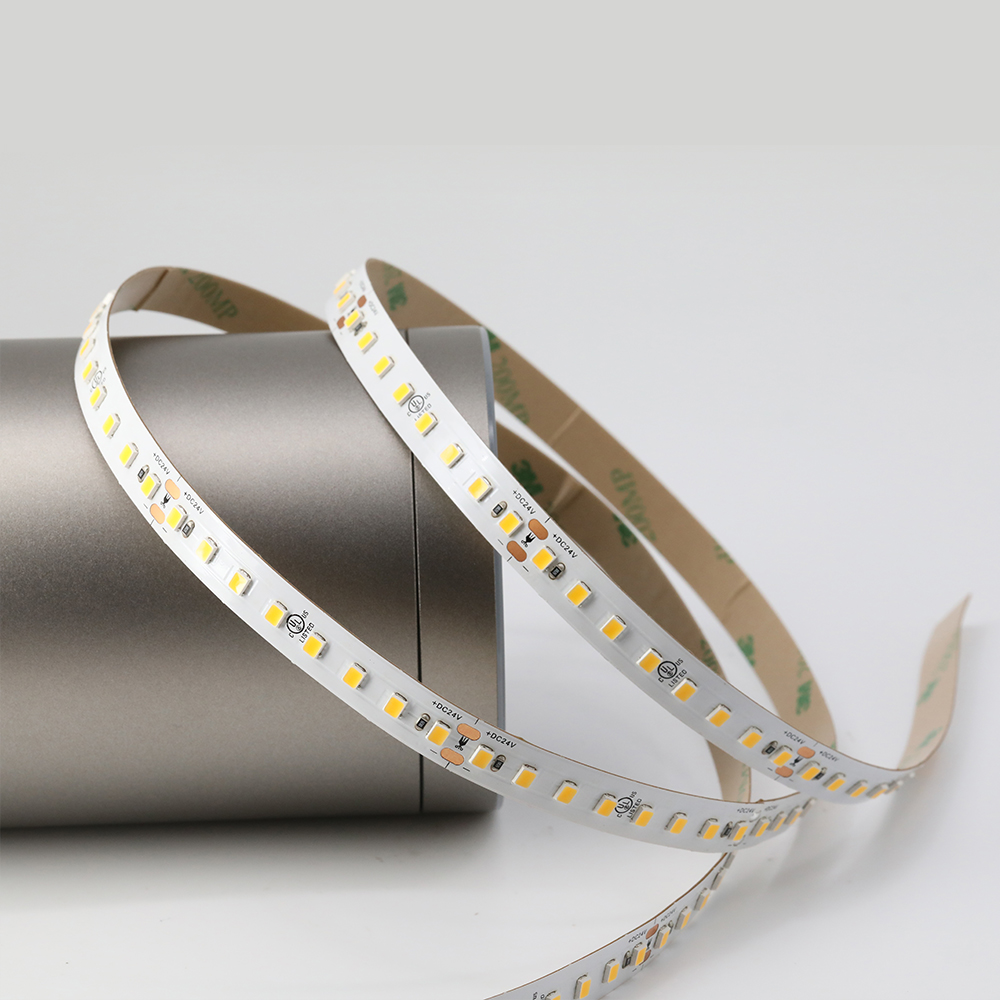

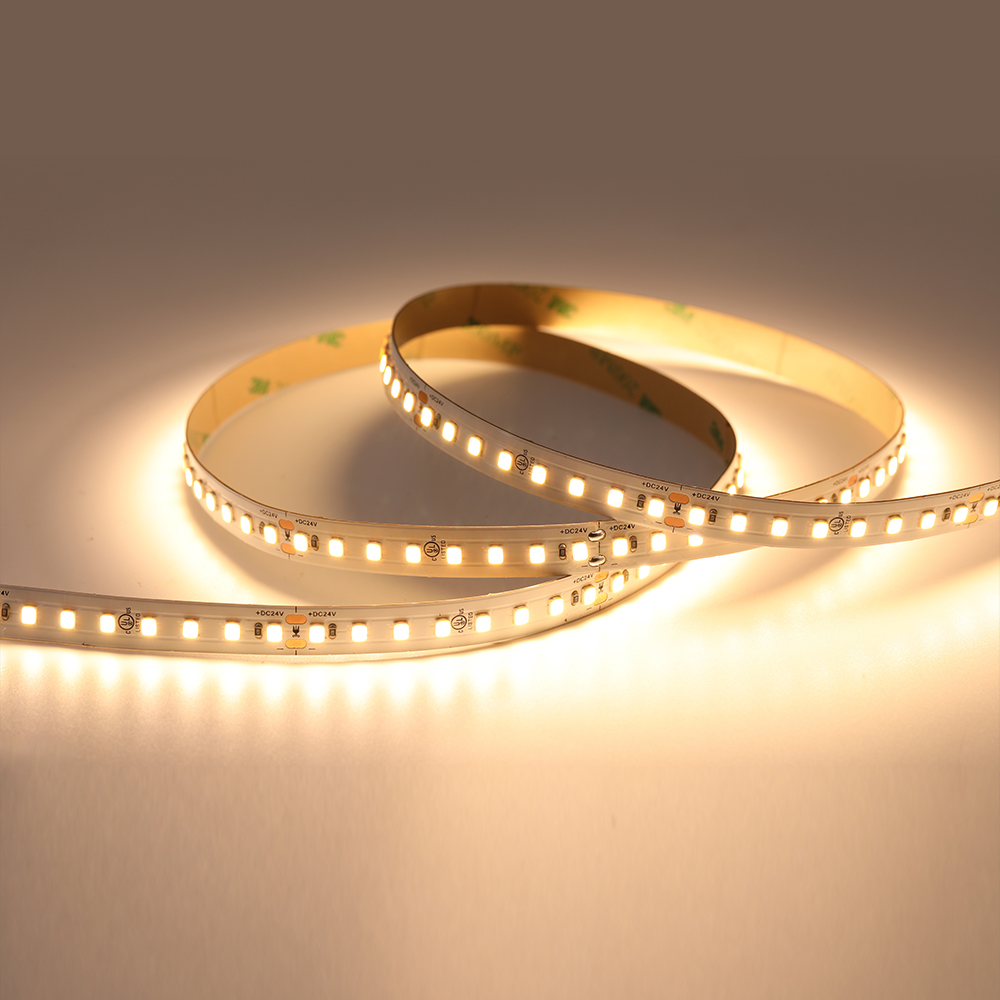

DC 24V High Efficiency 2835 single color LED strip 90LEDs/m


Description

Luminance efficiency upto 200LM/W

high Ra=80/90/95

Use 2835 high brightness led

SAN AN chip

90LEDs/M

1+2OZ copper thickness FPC

10mmPCB width

Higher efficiency

Consumes less energy,saving electricity and reducing energy costs

Longer lifespan:Lasts significantly longer

reducing the need for frequent replacements.

Product Parameter

Item No. S10W2835L90CV24 S10W2835L90CV24
Voltage 24V DC 24V DC
Power Typical 6Watt/meter,Max 8Watt/meter Typical 6Watt/meter,Max 8Watt/meter
CRI RA 80 RA 90
LED Type SMD 2835 SMD 2835
LEDs/m 90PCS 90PCS

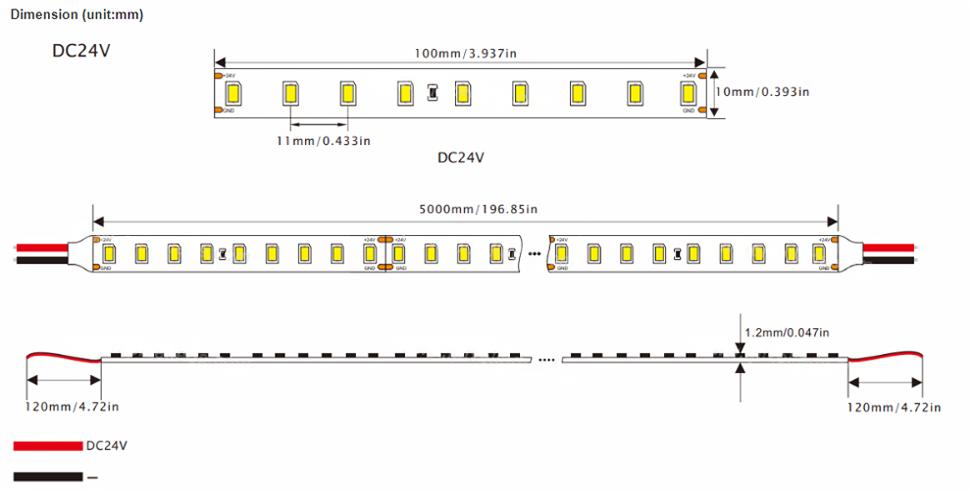

Cutting unit
100mm(9LED) 100mm(9LED)
Lumen 200lm/w 180lm/w
Available colors         2000K/3000K/4000K/6000K/red/blue/green/yellow/ice blue    2000K/3000K/4000K/6000K/red/blue/green/yellow/ice blue

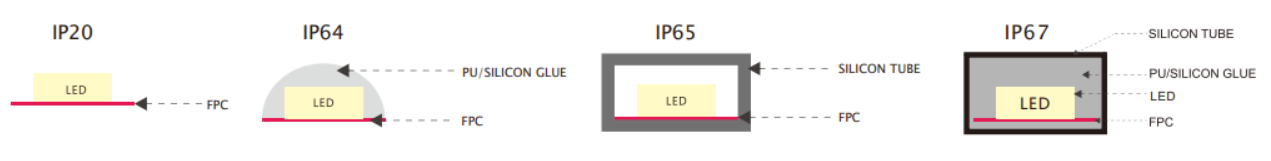

IP Rate  IP20/IP64/IP65/IP67 IP20/IP64/IP65/IP67
