Voltage:DC24V
Power:6watt
PCB Width:5mm
Colors:white/warm white/red/green/blue/yellow/pink/ice blue/Customized colors
LED/m:120leds/m
LED chip:Epistar/Sanan/Phillips
Item No. | S05W2835L120CV12 |
S08W2835L120CV24 |
Voltage | 12V DC | 24V DC |
Power | Typical 6Watt/meter,Max 12Watt/meter |
Typical 6Watt/meter,Max 12Watt/meter |
CRI | RA 80/90/95 |
RA 80/90/95 |
LED Type | SMD 2835 |
SMD 2835 |
LEDs/m | 120PCS | 120PCS |

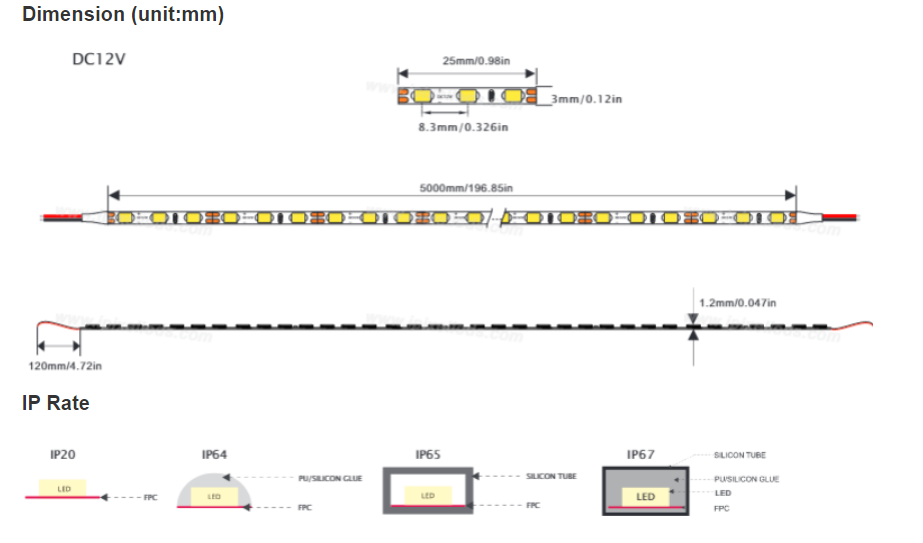

Cutting unit |
25mm(3LED) | 50mm(6led) |
Lumen | 690lm/m | 690lm/m |
Available colors | 2000K/3000K/4000K/6000K/red/blue/green/yellow/ice blue |
2000K/3000K/4000K/6000K/red/blue/green/yellow/ice blue |
IP Rate | IP20/IP64/IP65/IP67 | IP20/IP64/IP65/IP67 |
